Part Number	71918-126LF
Manufacturer	Storage & Server IO (Amphenol Communications Solutions)
Other Part Numbers	609-1756-ND 609-1756 71918126LF

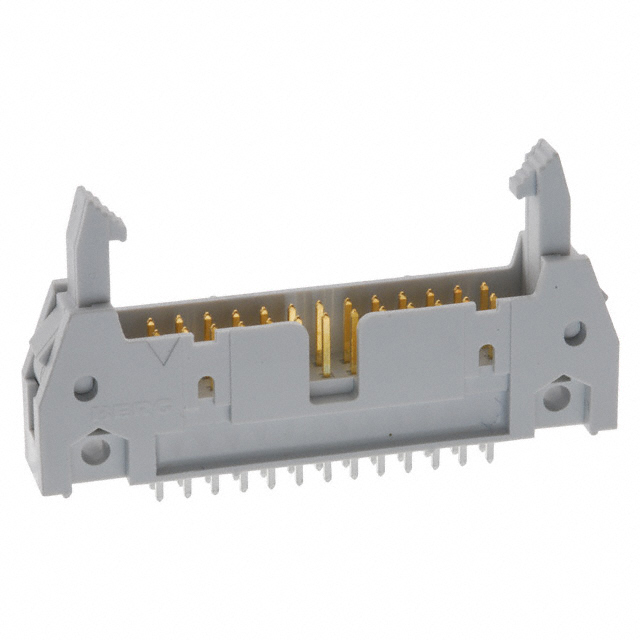

Description	CONN HEADER VERT 26POS 2.54MM
Detailed Description	Connector Header Through Hole 26 position 0.100" (2.54mm)
Manufacturer Standard Lead Time	6 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Rectangular Connectors Headers, Male Pins
Manufacturer		Storage & Server IO (Amphenol Communications Solutions)
Series		Quickie™
Packaging		Tube
Part Status		Active
Features		Keying Slot, Mounting Flange
Connector Type		Header
Mounting Type		Through Hole
Number of Positions		26
Number of Rows		2
Style		Board to Cable/Wire
Contact Type		Male Pin
Fastening Type		Latch Lock/Eject Hooks
Number of Positions Loaded		All
Termination		Solder
Material Flammability Rating		UL94 V-0
Contact Material		Phosphor Bronze
Insulation Color		Gray
Pitch - Mating		0.100" (2.54mm)
Contact Finish - Mating		Gold, GXT™
Contact Finish Thickness - Mating		30.0µin (0.76µm)
Contact Finish - Post		Tin
Contact Finish Thickness - Post		78.7µin (2.00µm)
Contact Shape		Square
Contact Length - Post		0.114" (2.90mm)
Insulation Height		0.685" (17.40mm)
Shrouding		Shrouded - 4 Wall
Insulation Material		Thermoplastic, Glass Filled
Row Spacing - Mating		0.100" (2.54mm)
Contact Length - Mating		0.228" (5.80mm)

RESOURCE TYPE		LINK
Datasheets		71918-126LF

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Affected
RoHS Status		RoHS Compliant

Can ship immediately.
