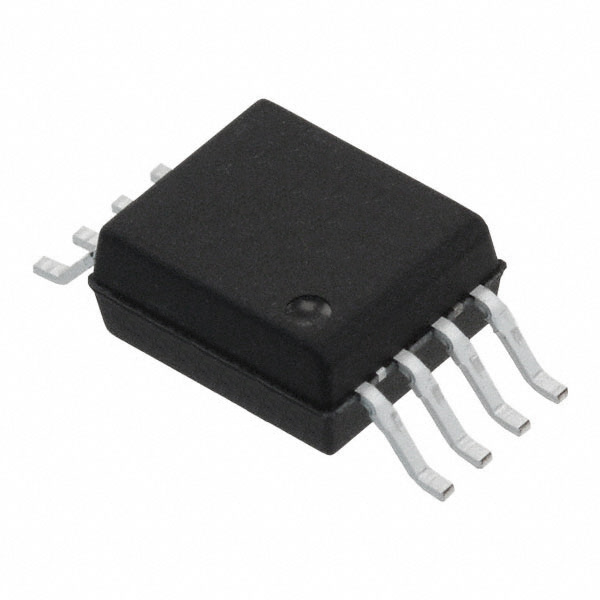

ACPL-C78A-060E

ACPL-C78A-060E

Part Number
ACPL-C78A-060E
Manufacturer Broadcom
Other Part Numbers
ACPL-C78A-060E-ND
Description IC OPAMP ISOLATION 1 CIRC 8SO
Detailed Description Isolation Amplifier 1 Circuit Differential 8-SO Stretched
Manufacturer Standard Lead Time 22 weeks

Product Attributes

Category
Manufacturer Broadcom
Series
Packaging
Tube
Part Status Active
Package / Case 8-SOIC (0.268", 6.81mm Width)
Output Type Differential
Mounting Type Surface Mount
Amplifier Type Isolation
Operating Temperature -40°C ~ 85°C
Current - Supply 11mA
Voltage - Input Offset 300 µV
Supplier Device Package 8-SO Stretched
Number of Circuits 1
Current - Output / Channel 18.6 mA
-3db Bandwidth 100 kHz
Voltage - Supply Span (Min) 4.5 V
Voltage - Supply Span (Max) 5.5 V

Documents & Media

RESOURCE TYPE LINK
Datasheets ACPL-C78A-060E
PCN Design/Specification Molding Chg 08/Feb/2016
PCN Design/Specification Mult Device Design Changes 10/Nov/2015
PCN Packaging Multiple Devices Marking/Labeling 07/Aug/2013

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8542.33.0001
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

In Stock: 506

Can ship immediately.
