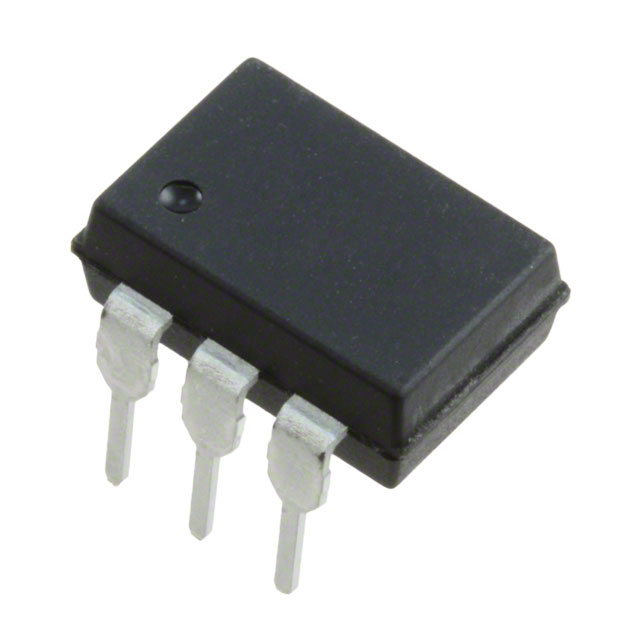

ASSR-1611-001E

ASSR-1611-001E

Part Number
ASSR-1611-001E
Manufacturer Broadcom
Other Part Numbers
516-2192-5-ND
ASSR-1611-001E-ND
3937-ASSR-1611-001E
2832-ASSR-1611-001E
516-2192-5
ASSR1611001E
Description SSR RELAY SPST-NO 2.5A 0-60V
Detailed Description Solid State SPST-NO (1 Form A) 6-DIP (0.300", 7.62mm)
Manufacturer Standard Lead Time 20 weeks

Product Attributes

Category
Manufacturer Broadcom
Series
ASSR
Packaging
Tube
Part Status Active
Package / Case 6-DIP (0.300", 7.62mm)
Output Type AC, DC
Mounting Type Through Hole
Voltage - Input 1.3VDC
Circuit SPST-NO (1 Form A)
Termination Style PC Pin
Load Current 2.5 A
Supplier Device Package 6-DIP
Voltage - Load 0 V ~ 60 V
On-State Resistance (Max) 100 mOhms

Documents & Media

RESOURCE TYPE LINK
Datasheets ASSR-1611-001E
Video File Relay Basics - Another Teaching Moment | DigiKey Electronics
Video File How to Choose a Relay - Another Teaching Moment
PCN Design/Specification Molding Chg 08/Feb/2016
PCN Design/Specification Mult Device Design Changes 10/Nov/2015
PCN Assembly/Origin ASSRx 27/Jan/2023
PCN Packaging Multiple Devices Marking/Labeling 07/Aug/2013
PCN Packaging Marking/Labeling Revision B 14/Jan/2014

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8536.41.0030
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

In Stock: 2221

Can ship immediately.
PACKAGING QUANTITY UNIT PRICE EXT PRICE
{{ p.name }} {{ numberFormat(p.buyQty) }} {{ priceFormat(p.unitPrice) }} {{ priceFormat(p.totalPrice) }}
Total Amount: {{ priceFormat(quotes.total) }} (including {{ priceFormat(quotes.fee) }} fee)

{{ package.name }}

QUANTITY UNIT PRICE EXT PRICE
{{ numberFormat(price.break_quantity) }} {{ priceFormat(price.unit_price) }} {{ priceFormat(price.break_quantity * price.unit_price) }}
Detailed pricing is currently unavailable.
Detailed packaging information is temporarily unavailable.
