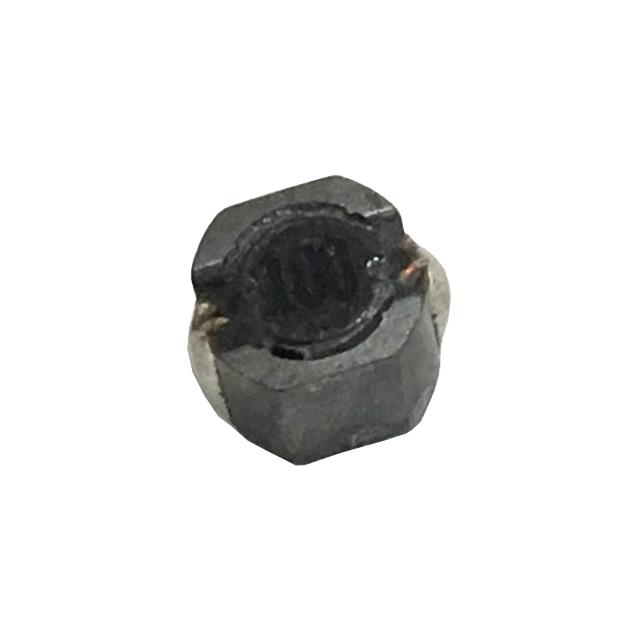

Part Number |
BPAL00060630151T00
|
---|---|
Manufacturer | Pulse Larsen Antenna |
Other Part Numbers |
553-BPAL00060630151T00TR-ND
553-BPAL00060630151T00TR
|
Description | INDUCTOR POWER |
Detailed Description | 150 µH Shielded Inductor 520 mA 738mOhm Max Nonstandard |
Manufacturer Standard Lead Time | 13 weeks |
Category | ||
---|---|---|
Manufacturer | Pulse Larsen Antenna | |
Series |
BPAL
|
|
Packaging |
Tape & Reel (TR)
|
|
Part Status | Active | |
Tolerance | ±30% | |
Package / Case | Nonstandard | |
Size / Dimension | 0.252" L x 0.244" W (6.40mm x 6.20mm) | |
Mounting Type | Surface Mount | |
Shielding | Shielded | |
Operating Temperature | -40°C ~ 125°C | |
DC Resistance (DCR) | 738mOhm Max | |
Current - Saturation (Isat) | 310mA | |
Material - Core | Ferrite | |
Inductance Frequency - Test | 100 kHz | |
Height - Seated (Max) | 0.118" (3.00mm) | |
Inductance | 150 µH | |
Current Rating (Amps) | 520 mA |
RESOURCE TYPE | LINK | |
---|---|---|
Datasheets | BPAL00060630151T00 | |
Other Related Documents | BPAL Series Test Report | |
Environmental Information | Pulse Larson REACH |
ATTRIBUTE | DESCRIPTION | |
---|---|---|
ECCN | EAR99 | |
HTSUS | 8504.50.8000 | |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
REACH Status | REACH Unaffected | |
RoHS Status | ROHS3 Compliant |
