BPXX000404304R7T00

Part Number
BPXX000404304R7T00
Manufacturer Pulse Larsen Antenna
Other Part Numbers
553-BPXX000404304R7T00TR-ND
553-BPXX000404304R7T00TR
Description INDUCTOR POWER

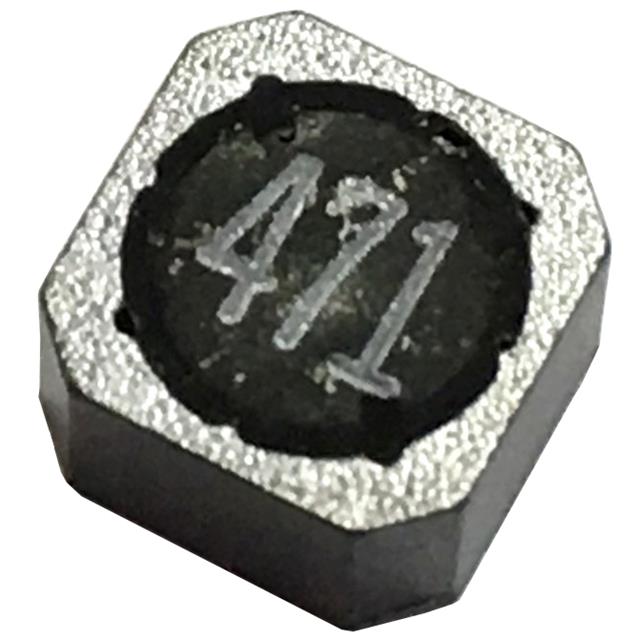

Detailed Description 4.7 µH Shielded Inductor 2.3 A 55mOhm Max 1616 (4040 Metric)
Manufacturer Standard Lead Time 13 weeks

Product Attributes

Category
Manufacturer Pulse Larsen Antenna
Series
BPXX
Packaging
Tape & Reel (TR)
Part Status Active
Tolerance ±30%
Package / Case 1616 (4040 Metric)
Size / Dimension 0.157" L x 0.157" W (4.00mm x 4.00mm)
Mounting Type Surface Mount
Shielding Shielded
Operating Temperature -40°C ~ 125°C
DC Resistance (DCR) 55mOhm Max
Current - Saturation (Isat) 2A
Inductance Frequency - Test 100 kHz
Supplier Device Package 1616
Height - Seated (Max) 0.118" (3.00mm)
Inductance 4.7 µH
Current Rating (Amps) 2.3 A

Documents & Media

RESOURCE TYPE LINK
Datasheets BPXX000404304R7T00
Environmental Information Pulse Larson REACH

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8504.50.8000
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant
