BWCS00120707R18J00

Part Number
BWCS00120707R18J00
Manufacturer Pulse Larsen Antenna
Other Part Numbers
553-BWCS00120707R18J00TR-ND
553-BWCS00120707R18J00TR
Description INDUCTOR RF

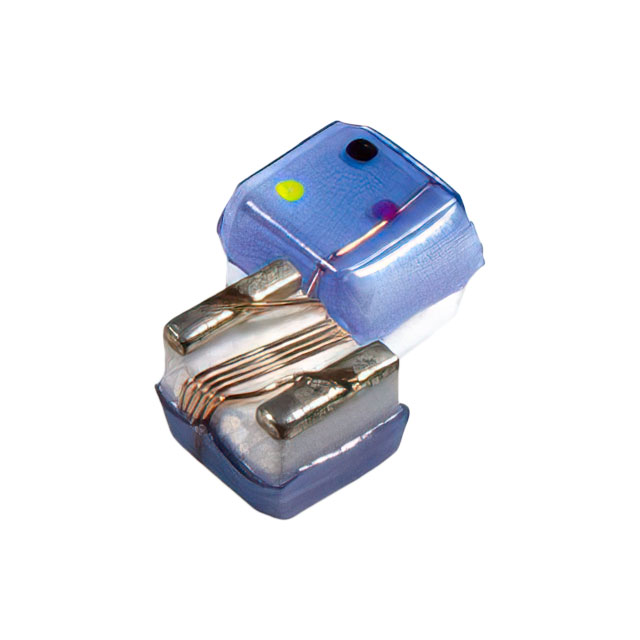

Detailed Description 180 nH Unshielded Drum Core, Wirewound Inductor 50 mA 2.7Ohm Max 0402 (1005 Metric)
Manufacturer Standard Lead Time 13 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer Pulse Larsen Antenna
Series
BWCS
Packaging
Tape & Reel (TR)
Part Status Active
Tolerance ±5%
Package / Case 0402 (1005 Metric)
Size / Dimension 0.047" L x 0.025" W (1.19mm x 0.64mm)
Mounting Type Surface Mount
Shielding Unshielded
Type Drum Core, Wirewound
Operating Temperature -40°C ~ 125°C
DC Resistance (DCR) 2.7Ohm Max
Q @ Freq 8 @ 100MHz
Frequency - Self Resonant 700MHz
Material - Core Ceramic
Inductance Frequency - Test 100 MHz
Supplier Device Package 0402
Height - Seated (Max) 0.026" (0.66mm)
Inductance 180 nH
Current Rating (Amps) 50 mA

Documents & Media

RESOURCE TYPE LINK
Datasheets BWCS00120707R18J00
Environmental Information Pulse Larson REACH

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8504.50.8000
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant
