BWMR002016126R8M00

Part Number
BWMR002016126R8M00
Manufacturer Pulse Larsen Antenna
Other Part Numbers
553-BWMR002016126R8M00TR-ND
553-BWMR002016126R8M00TR
Description INDUCTOR POWER

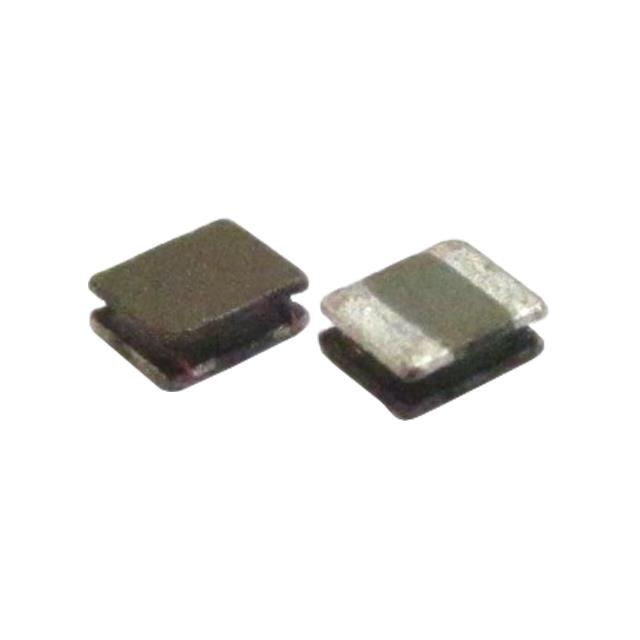

Detailed Description 6.8 µH Shielded Drum Core, Wirewound Inductor 920 mA 380mOhm Max 0806 (2016 Metric)
Manufacturer Standard Lead Time 13 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer Pulse Larsen Antenna
Series
BWMR
Packaging
Tape & Reel (TR)
Part Status Active
Tolerance ±20%
Package / Case 0806 (2016 Metric)
Size / Dimension 0.079" L x 0.063" W (2.00mm x 1.60mm)
Mounting Type Surface Mount
Shielding Shielded
Type Drum Core, Wirewound
Operating Temperature -40°C ~ 125°C
DC Resistance (DCR) 380mOhm Max
Frequency - Self Resonant 20MHz
Current - Saturation (Isat) 1.2A
Material - Core Metal
Inductance Frequency - Test 1 MHz
Supplier Device Package 0806
Height - Seated (Max) 0.047" (1.20mm)
Inductance 6.8 µH
Current Rating (Amps) 920 mA

Documents & Media

RESOURCE TYPE LINK
Datasheets BWMR002016126R8M00
Environmental Information Pulse Larson REACH

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8504.50.8000
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant
