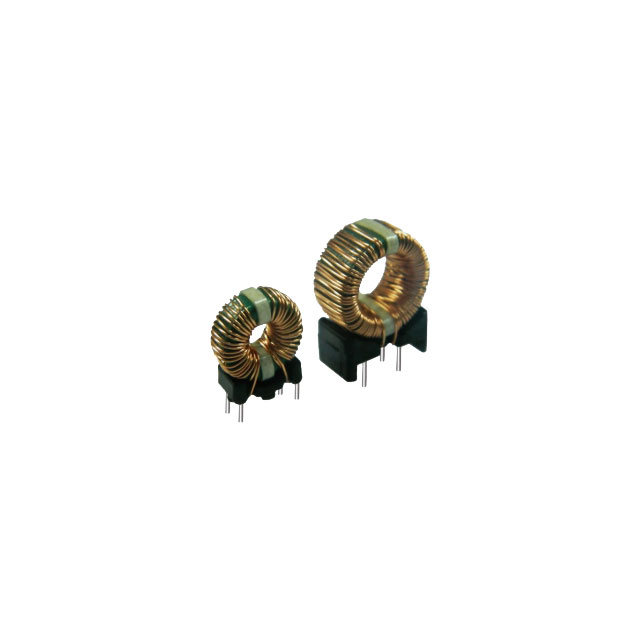

FL2D-10-203

FL2D-10-203

Part Number	FL2D-10-203
Manufacturer	Mornsun
Other Part Numbers	2725-FL2D-10-203-ND 2725-FL2D-10-203
Description	COMMON MODE FILTER 20000H 1A 240
Detailed Description	20 mH @ 1 kHz 2 Line Common Mode Choke Through Hole 1A DCR 240mOhm (Typ)
Manufacturer Standard Lead Time	8 weeks

Product Attributes

Category		Filters Common Mode Chokes
Manufacturer		Mornsun
Series		FL2D-xx-xxx
Packaging		Tray
Part Status		Active
Package / Case		Vertical, 4 PC Pin
Filter Type		Power Line
Size / Dimension		0.709" L x 0.394" W (18.00mm x 10.00mm)
Mounting Type		Through Hole
Number of Lines		2
Operating Temperature		-40°C ~ 105°C
Approval Agency		UL
Height (Max)		0.689" (17.50mm)
Current Rating (Max)		1A
DC Resistance (DCR) (Max)		240mOhm (Typ)
Inductance @ Frequency		20 mH @ 1 kHz

Documents & Media

RESOURCE TYPE		LINK
Datasheets		FL2D-10-203

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8548.00.0000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		ROHS3 Compliant

In Stock: 103

Can ship immediately.
