PCA1V3230-100-R

Part Number
PCA1V3230-100-R
Manufacturer PowerStor (Eaton)
Other Part Numbers
283-PCA1V3230-100-RTR-ND
283-PCA1V3230-100-RCT-ND
283-PCA1V3230-100-RDKR-ND
283-PCA1V3230-100-RCT
283-PCA1V3230-100-RDKR
283-PCA1V3230-100-RTR
Description IND 10.0UH 1.1A SMT 2PAD

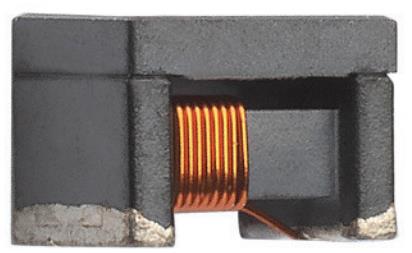

Detailed Description 10 µH Unshielded Wirewound Inductor 1.13 A 340mOhm Max 1210 (3225 Metric)
Manufacturer Standard Lead Time 11 weeks

Product Attributes

Category
Manufacturer PowerStor (Eaton)
Series
PCA1V3230
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Part Status Active
Tolerance ±20%
Package / Case 1210 (3225 Metric)
Size / Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Mounting Type Surface Mount
Shielding Unshielded
Type Wirewound
Operating Temperature -55°C ~ 140°C
DC Resistance (DCR) 340mOhm Max
Frequency - Self Resonant 95MHz
Ratings AEC-Q200
Current - Saturation (Isat) 1.1A
Material - Core Ferrite
Inductance Frequency - Test 100 kHz
Supplier Device Package 1210
Height - Seated (Max) 0.126" (3.20mm)
Inductance 10 µH
Current Rating (Amps) 1.13 A

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8504.50.8000
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

In Stock: 2327

Can ship immediately.
