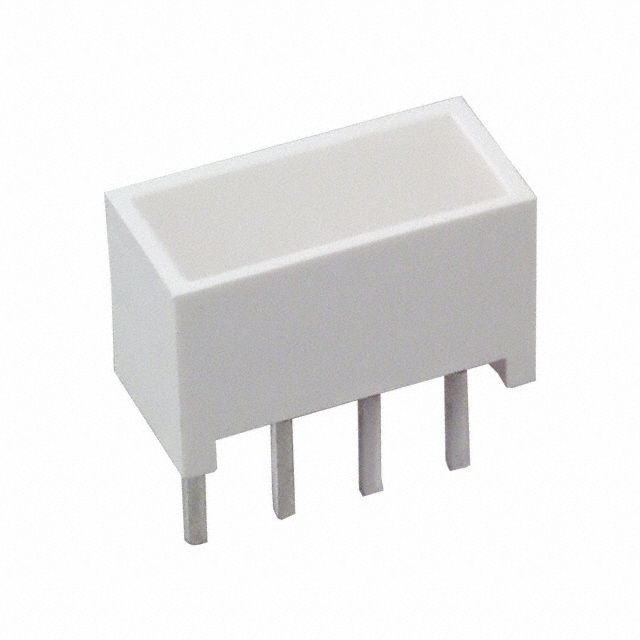

HLMP-2300

Part Number
HLMP-2300
Manufacturer Broadcom
Other Part Numbers
516-1243-5-ND
516-1243-5
516-1243-5-NDR
Description LED LT BAR 8.89X3.81MM SGL HER
Detailed Description LED Circuit Board Indicator LED Circuit Board Indicator Bar - Single, SIP Red 2V 30mA Rectangle with Flat Top 8.89mm x 3.81mm Through Hole
Manufacturer Standard Lead Time 16 weeks

Product Attributes

Category
Manufacturer Broadcom
Series
HLMP-2300
Packaging
Tube
Part Status Active
Current 30mA
Color Red
Voltage Rating 2V
Mounting Type Through Hole
Millicandela Rating 23mcd
Configuration Bar - Single, SIP
Wavelength - Peak 634nm
Lens Style Rectangle with Flat Top
Lens Size 8.89mm x 3.81mm

Documents & Media

RESOURCE TYPE LINK
Datasheets HLMP-2300
PCN Design/Specification Alternate Scrambler/Painter 12/Nov/2014
PCN Design/Specification Mult Dev Design 02/Apr/2024
PCN Assembly/Origin New Dice Replacement 28/Oct/2022
Product Drawings LED Light Bar 8.89 x 3.81mm Top
Product Drawings LED Light Bar 8.89 x 3.81mm Side

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8531.20.0040
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

In Stock: 1821

Can ship immediately.
