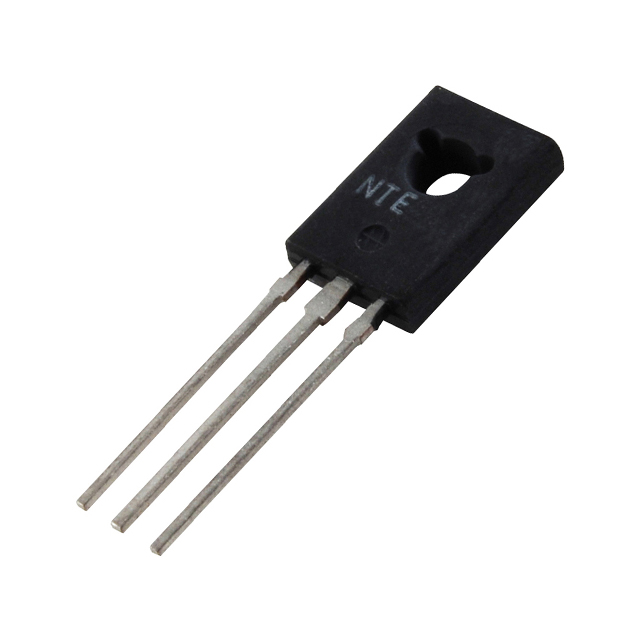

NTE2695

NTE2695

Part Number	NTE2695
Manufacturer	NTE Electronics, Inc.
Other Part Numbers	2368-NTE2695-ND 2368-NTE2695
Description	TRANS PNP 100V 4A TO126
Detailed Description	Bipolar (BJT) Transistor PNP 100 V 4 A 40MHz 1.5 W Through Hole TO-126
Datasheet	Datasheet

Product Attributes

Category		Discrete Semiconductor Products Transistors Bipolar (BJT) Single Bipolar Transistors
Manufacturer		NTE Electronics, Inc.
Series
Packaging		Bag
Part Status		Active
Package / Case		TO-225AA, TO-126-3
Mounting Type		Through Hole
Transistor Type		PNP
Operating Temperature		-65°C ~ 150°C (TJ)
Vce Saturation (Max) @ Ib, Ic		600mV @ 100mA, 1A
Current - Collector Cutoff (Max)		100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce		40 @ 200mA, 1V
Frequency - Transition		40MHz
Supplier Device Package		TO-126
Current - Collector (Ic) (Max)		4 A
Voltage - Collector Emitter Breakdown (Max)		100 V
Power - Max		1.5 W

Documents & Media

RESOURCE TYPE		LINK
Datasheets		NTE2695
Datasheets		RoHS Statement
Datasheets		REACH Statement

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.29.0095
RoHS Status		ROHS3 Compliant
